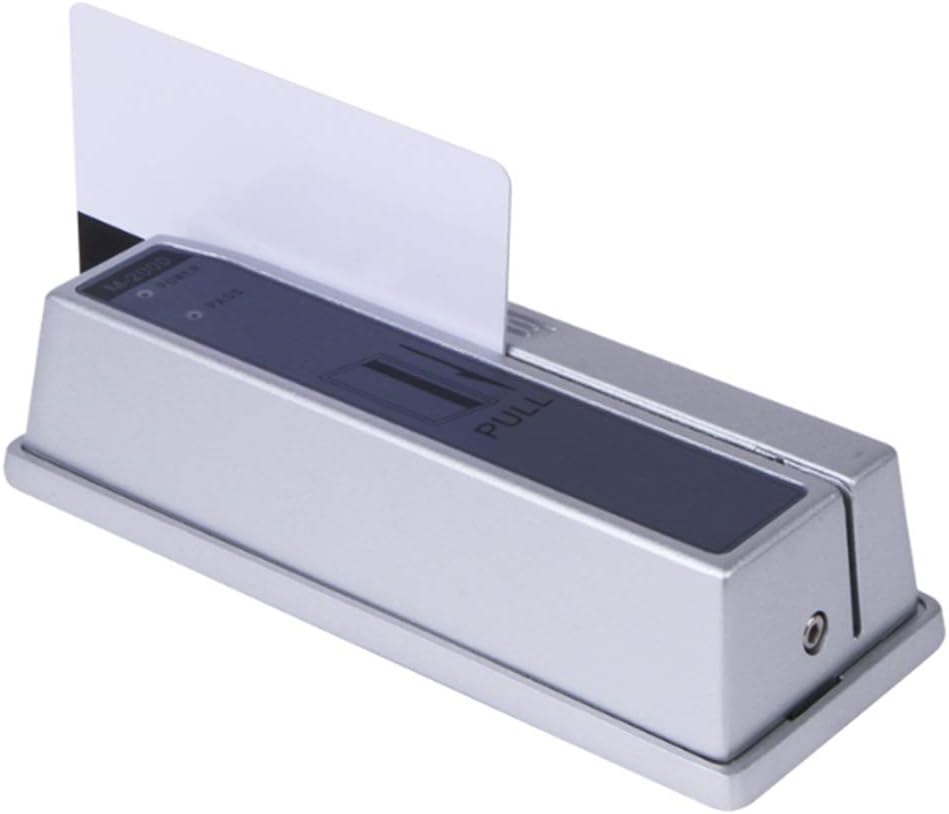

LBS M-200 Card Reader Access Controller Work with Electric Lock Access Control System for Bank Card ATM Credit Card

Specification: Power supply: DC12V Output current of electric lock: DC12V 3A Static current: 22MA Operation current: 40MA Maintain open time: 1-10S adjustable Time difference for unlocking and open door: 0.5S Magnetic card standard ISO 7811-7815 Card feeding speed: 10-120cm/s Operation temperature: -42 ~45℃/-43.6 ~113ºF Environment humidity: 10~90%RH Dimension: 138x56x32mm/5.43x2.2x1.26 inch Weight: 400g Packing Include: M-200*1 Screw&rubber plug*2 Cable*1 User manual*1 Card*1

• Magnetic head meets the ANSi/ISO standard, There is No card capacity limitation,any credit of ATM bank can be used.
• The metal outre cover of alloy of zinc is sturdy and durable,fixed with prevent demolition screw. Unique anti-interference design to fit a variety of environment installation.
• Adopt import the allot magnetic head,wear-resisting,high sensitivity,support different card feeding speed.
• Characterized with large capacity of lock output module, it can link with various electric locks directly.

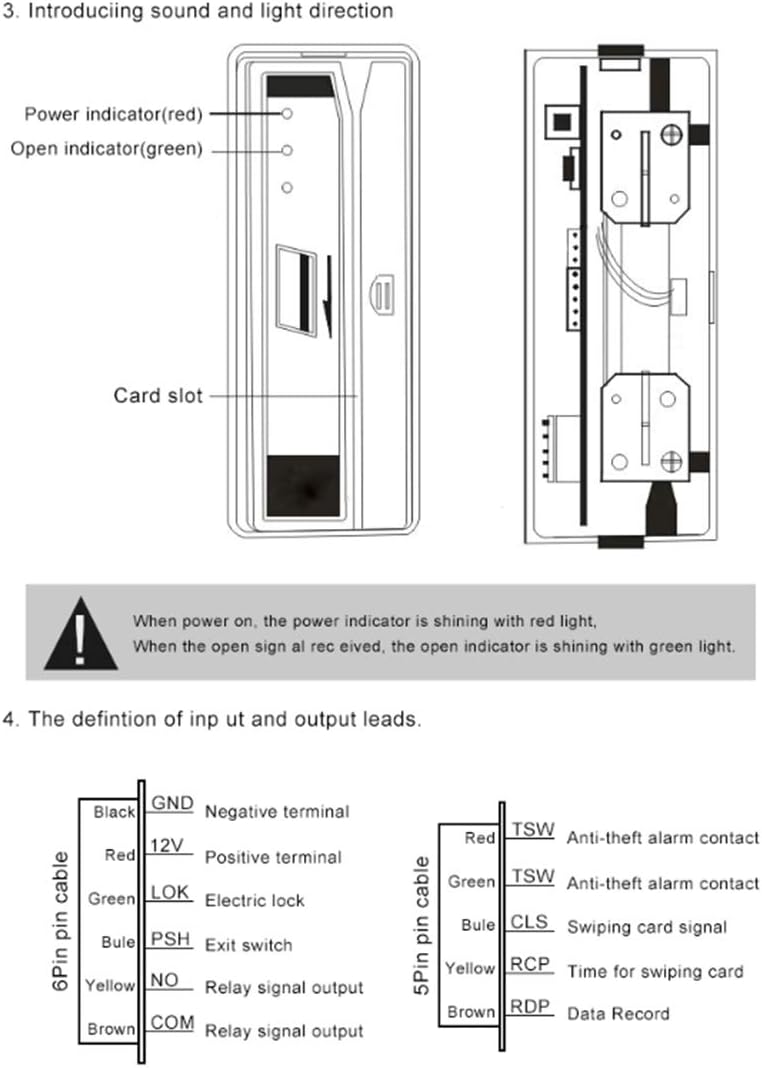

• Dry contact signal output, can be linked with various auto door,access controller and electric lock simultaneously,with time difference setting to ensure the auto door runs smoothly, With sound and light indicator instruction.
