MakerFocus Wireless Tracker Supports GPS Galileo Multi-System Joint Positioning ESP32-S3 WiFi Bluetooth SX1262 UC6580 with 3000mAh Battery, 915MHz LoRa Antenna, 0.96-inch LCD Display for Meshtastic

About Wireless Tracker: Wireless Tracker is a development kit based on ESP32-S3FN8. Integrates SX1262 LoRa chipset and UC6580 GNSS chipset to provide fast GNSS solution for IoT. It can track any object and upload the data wirelessly by WiFi, Bluetooth, LoRaWireless Tracker supports L1 + L5/L2, and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etcFeature:1. ESP32-S3FN8+SX1262+UC6580 chipset, supports WiFi, LoRa, Bluetooth, GNSS2. Low power design of dual frequency multi system based on 22nm technology3. Support L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning4. Support Ar duino development environment5. Onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use6. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures7. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching)8. Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information Parameter:Master Chip: ESP32-S3FN8LoRa Chipset: SX1262GNSS Chipset: UC6580Frequency: 863-923MHzMax TX Power: 21 ± 1dBmReceiving Sensitivity: -139dBmWiFi: 802.11 b/g/n, up to 150MbpsBluetooth: Bluetooth LE: Bluetooth 5, Bluetooth meshInterface: Type-C USB; SH1.25 lithium battery interface; 2 * IPEX (U.FL) interfaceBattery: 3.7V lithium battery power supplyOperating Temperature: -20-70℃Dimension: 65.48 * 28.06* 13.52mm----------------------------------------------------------------------- About 3000mAh Battery with Micro JST 1.25 Plug:Specification:Standard Voltage: 3.7VCapacity: 3000mAhWeight : 194g (4PCS) , 48.5g/1unitDimensions(±2mm): 65 * 36 * 10 mm / 2.56 * 1.42 * 0.39inch(L*W*H)Discharge Rate: 1CWorking Current: 1.5AThe maximum discharging current: 3COvercurrent Protection: 1.8-2.1AType of Connector: Micro JST 1.25Standard Charging Method:Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current≤ 0.05C-----------------------------------------------------------------------Package Content:1 * Wireless Tracker4 * Pin Headers1 * Antenna2 * Power Cord1 * 3000mAh Battery with Micro JST 1.25 Plug

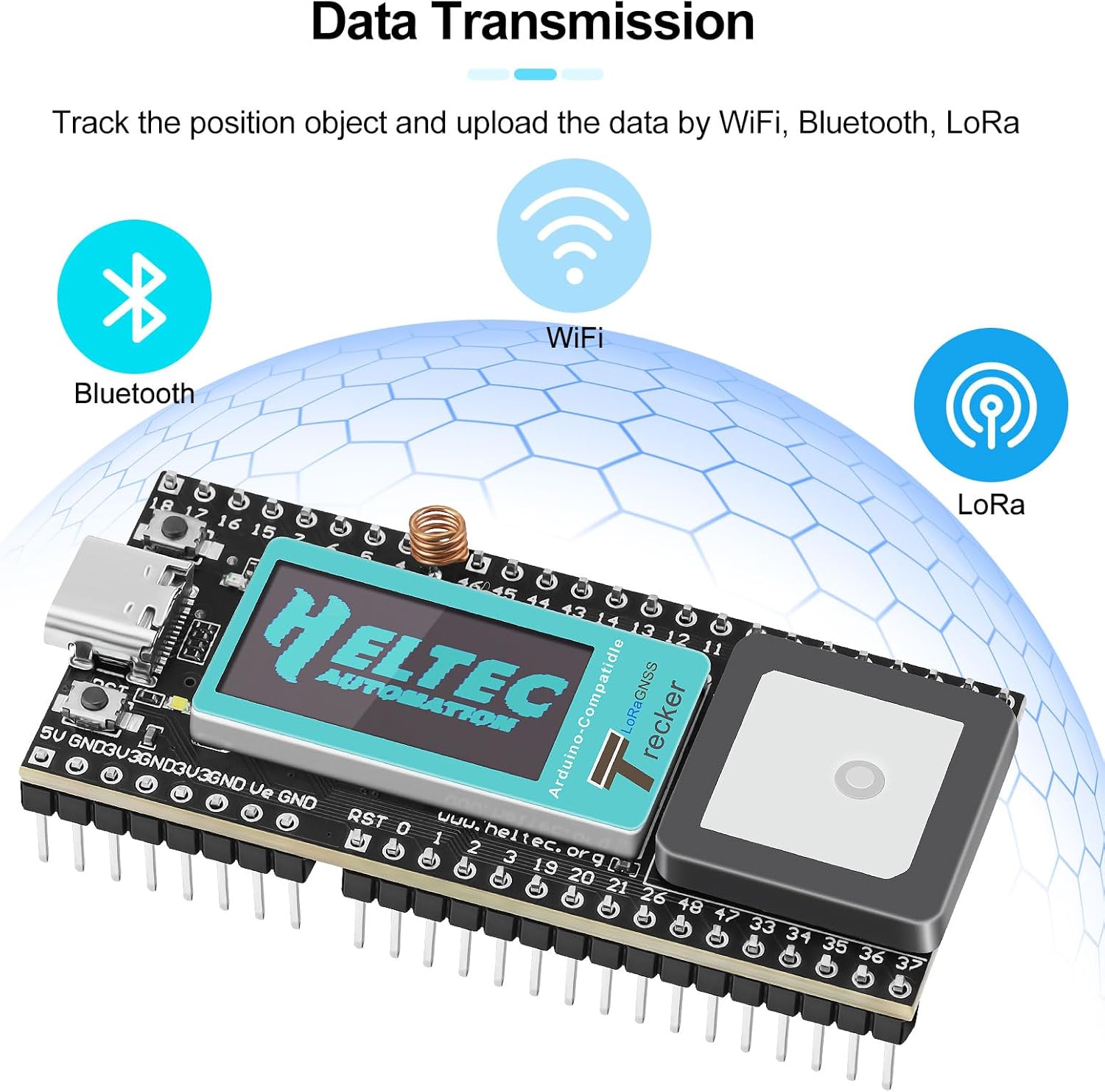

• Main Function: Based on ESP32-S3FN8, integrates UC6580 and SX1262 to provide fast GNSS solution for IoT, Wireless Tracker supports L1 + L5/L2 and GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning, can track any object and upload the data by WiFi, Bluetooth, LoRa
• Perfect Design: Low power design of dual frequency multi system based on 22nm technology. Onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use. Low power consumption, multi data transmission methods and interfaces to facilitate your development and application
• Applications: Perfectly compatible with Arduino, GPS module can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc
• Power Supply: Onboard SH1.25 battery interface, you can power ESP32 development board with battery whose plug is Micro JST1.25. You can use Type-C interface to power it as well. The power interface provides complete safety protection, Protect your dev board from damage
• LCD Display: Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power and other information
